The stainless steel bar stock 309S with peeled and polished finish
Product Description:
Item: Stainless Steel Bar
Standard: ASTM A276, ASTM A484, ASTM A582
Material: 301, 304, 304L, 309S, 321, 316, 316L, 317, 317L, 310S, 321, 329,201,630,904L,405,409,430,434,444,403,410,420,440A,440B,440C.
Specifications:
Round Bar, diameter 1~1500mm.
Flat bar, thickness 0.1~100mm, width 3~1500mm.
Square bar, 1x1mm~800x800mm
Length: 2m, 3m, 5.8m, 6m,etc.
Surface: Black, peeled, polishing, bright, sand blast, hair line, etc.
About Stainless Steel Round Bar:
Stainless Steel Bright Round Metric (BRM), Stainless Steel shaft bars for use in Valve Shafts, Piston Shafts, Pump Shaft, Cylinder Shafts, Boat Shafts and Bearing Bars. Stainless Steel Drawn bars have greater size accuracy, straightness, and increased tensile and yield strength, as well as improved machinability. In addition to standard Stainless Steel cold drawn bars, it can be supplied as turned and polished, turned ground and polished and drawn ground and polished in shape.
Size Of 309S Stainless Steel Round Bar:
Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 mm | 45.0 mm |
| 6.0 mm | 50.0 mm |
| 7.0 mm | 55.0 mm |
| 8.0 mm | 60.0 mm |
| 9.0 mm | 65.0 mm |
| 10.0 mm | 70.0 mm |
| 12.0 mm | 75.0 mm |
| 16.0 mm | 80.0 mm |
| 20.0 mm | 90.0 mm |
| 25.0 mm | 100.0 mm |
| 30.0 mm | 130.0 mm |
| 35.0 mm | 160.0 mm |
| 40.0 mm | 200.0 mm |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8” – 3.00” | h8-h9-h10-h11, ASTM A276 |
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6” – 2.50” | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50” – 6.00” | h11, ASTMA-484 h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00” | h9-h10-h11, ASTM A276 |
Chemical Composition:
| Chemical composition of stainless steel |
| standard name | chemical composition |
| ASTM | EN | GB | JIS | KS | C (carbon) | Si (silicon) | Mn (manganese) | Cr (chromium) | Ni (nickel) | S (sulfur) | P (phosphorus) | others |
| 309S | 1.4833 | 0Cr23Ni13 | SUS309S | STS309S | ≤0.08 | ≤1.0 | ≤2.0 | 22.0~24.0 | 12.0~15.0 | ≤0.030 | ≤0.035 | - |

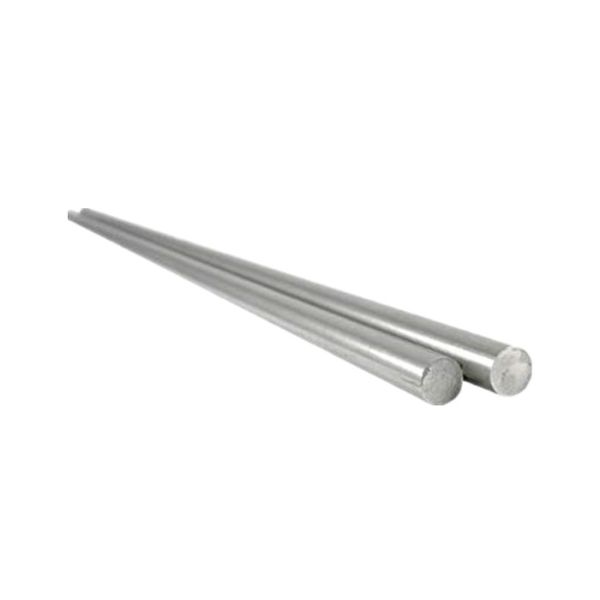

Product Photos:
